DAO Governance Architecture

This document describes the detailed architecture of the confidential governance system.

Overview

The DAO system implements fully confidential on-chain governance where votes, voting power, and token balances remain encrypted throughout the entire governance lifecycle. Built on Zama's fhEVM, the system enables secure, private decision-making while maintaining verifiable outcomes.

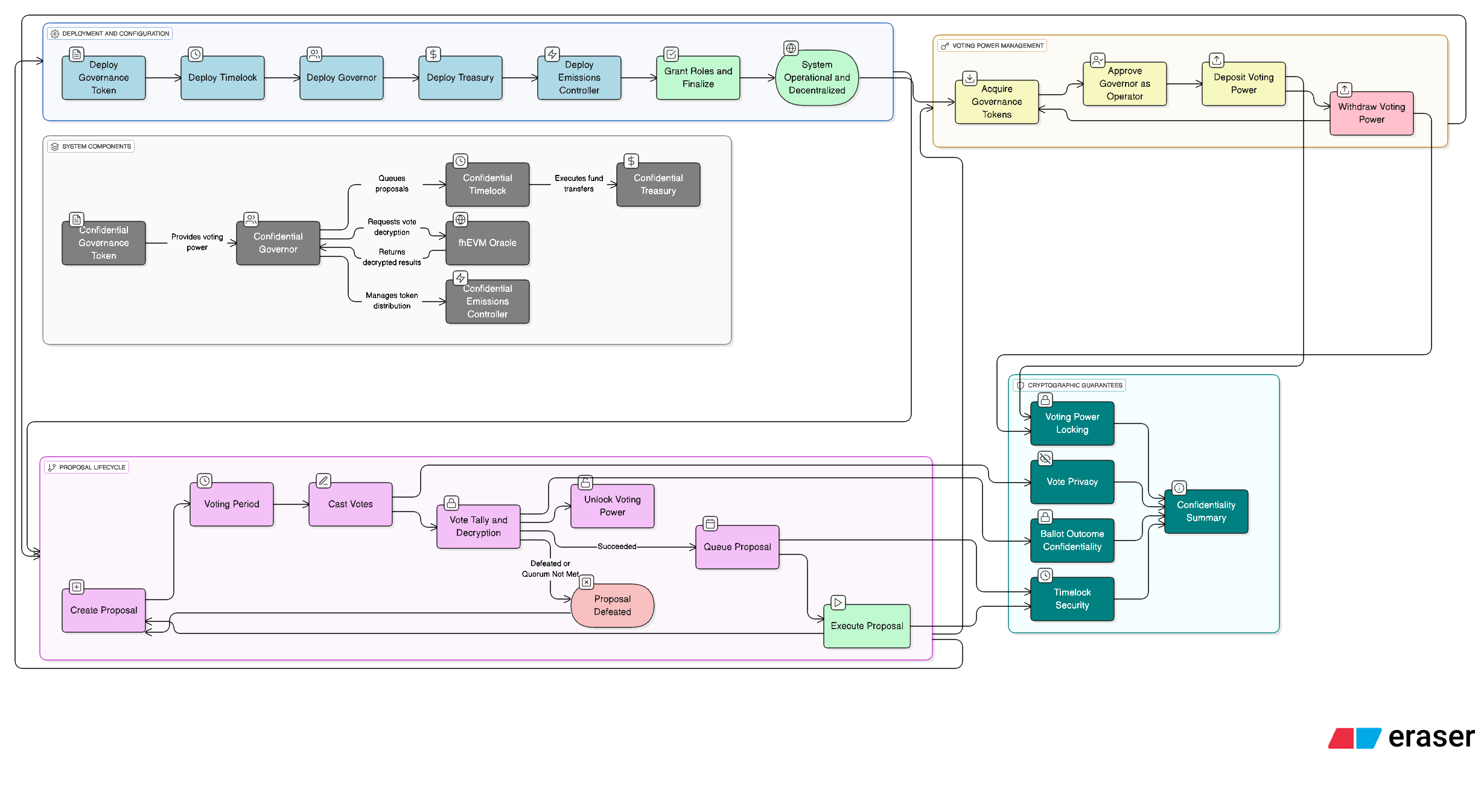

Architecture Diagram

The diagram illustrates the complete governance flow from token deposit through encrypted voting to proposal execution.

System Components

ConfidentialGovernanceToken

ERC7984 token with encrypted balances for governance participation.

Key Features:

• Encrypted balance storage (euint64)
• Confidential transfers
• Operator approval system
• Minting and burning with privacy

Core Functions:

function confidentialTransfer(address to, euint64 amount) external returns (euint64);
function confidentialTransferFrom(address from, address to, euint64 amount) external returns (euint64);
function approveOperator(address operator) external;
function mint(address to, externalEuint64 amount, bytes proof) external;

ConfidentialGovernor

Main governance contract managing proposals and encrypted voting.

State Management:

struct Proposal {
    address proposer;
    address[] targets;
    uint256[] values;
    bytes[] calldatas;
    uint64 voteStart;
    uint64 voteEnd;
    bool finalized;
    euint64 forVotes;      // Encrypted
    euint64 againstVotes;  // Encrypted
    euint64 abstainVotes;  // Encrypted
}

mapping(address => euint64) private _balances;    // Total deposited
mapping(address => euint64) private _available;   // Unlocked power

Key Features:

• Encrypted voting power tracking
• Confidential vote tallying
• Oracle-based outcome decryption
• Timelock integration

ConfidentialTimelock

Time-delayed execution controller for security.

Functionality:

• Mandatory delay before execution
• Batch operation scheduling
• Emergency cancellation
• Role-based access control

Roles:

• PROPOSER_ROLE: Can schedule operations (Governor)
• EXECUTOR_ROLE: Can execute operations (Governor)
• ADMIN_ROLE: Can manage roles

ConfidentialTreasury

Manages DAO funds with confidential accounting.

Features:

• Encrypted balance tracking
• Multi-token support
• Timelock-only access
• Confidential transfers

Security:

modifier onlyTimelock() {
    require(msg.sender == address(timelock), "only timelock");
    _;
}

ConfidentialEmissionsController

Manages token distribution and vesting schedules.

Functionality:

• Configurable emission rates
• Encrypted reward distributions
• Time-based vesting
• Multiple recipient support

Complete Governance Flow

Phase 1: Voting Power Acquisition

User Journey:

1. Acquire governance tokens
2. Approve Governor as operator
3. Encrypt deposit amount
4. Deposit to Governor contract

Code Flow:

// 1. Approve governor
await governanceToken.approveOperator(governorAddress);

// 2. Encrypt amount
const input = fhevm.createEncryptedInput(governorAddress, userAddress);
input.add64(amount);
const encrypted = await input.encrypt();

// 3. Deposit
await governor.depositVotingPower(encrypted.handles[0], encrypted.inputProof);

Governor Processing:

function depositVotingPower(
    externalEuint64 encryptedAmount,
    bytes calldata inputProof
) external returns (euint64) {
    euint64 amount = FHE.fromExternal(encryptedAmount, inputProof);
    euint64 transferred = token.confidentialTransferFrom(msg.sender, address(this), amount);

    _balances[msg.sender] = FHE.add(_balances[msg.sender], transferred);
    _available[msg.sender] = FHE.add(_available[msg.sender], transferred);

    emit VotesDeposited(msg.sender, transferred);
    return transferred;
}

Result: User has encrypted voting power in Governor

Phase 2: Proposal Creation

Proposal Structure:

{
  targets: [treasuryAddress],
  values: [0],
  calldatas: [encodedFunctionCall],
  description: "Proposal: Fund Development"
}

Governor Processing:

function propose(
    address[] memory targets,
    uint256[] memory values,
    bytes[] memory calldatas,
    string memory description
) external returns (uint256 proposalId) {
    // 1. Validate arrays
    require(targets.length == values.length && targets.length == calldatas.length);

    // 2. Generate proposal ID
    proposalId = hashProposal(targets, values, calldatas, keccak256(bytes(description)));

    // 3. Create proposal
    Proposal storage proposal = _proposals[proposalId];
    proposal.proposer = msg.sender;
    proposal.targets = targets;
    proposal.values = values;
    proposal.calldatas = calldatas;
    proposal.voteStart = uint64(block.timestamp) + votingDelay;
    proposal.voteEnd = proposal.voteStart + votingPeriod;

    // 4. Initialize encrypted tallies
    proposal.forVotes = FHE.asEuint64(0);
    proposal.againstVotes = FHE.asEuint64(0);
    proposal.abstainVotes = FHE.asEuint64(0);

    emit ProposalCreated(proposalId, msg.sender, targets, values, calldatas, description);
}

State: Proposal is Pending (waiting for votingDelay)

Phase 3: Voting Period

Vote Types:

• 0 = Against
• 1 = For
• 2 = Abstain

User Voting:

// Encrypt vote weight
const input = fhevm.createEncryptedInput(governorAddress, voterAddress);
input.add64(voteWeight);
const encrypted = await input.encrypt();

// Cast vote
await governor.castVote(
  proposalId,
  1, // VoteType.For
  encrypted.handles[0],
  encrypted.inputProof
);

Governor Processing:

function castVote(
    uint256 proposalId,
    VoteType support,
    externalEuint64 encryptedAmount,
    bytes calldata inputProof
) external returns (ebool) {
    Proposal storage proposal = _proposals[proposalId];

    // 1. Validate voting period
    require(block.timestamp >= proposal.voteStart && block.timestamp < proposal.voteEnd);

    // 2. Decrypt vote weight
    euint64 weight = FHE.fromExternal(encryptedAmount, inputProof);

    // 3. Consume available voting power
    (ebool success, euint64 applied) = _tryConsumeAvailable(msg.sender, weight);

    // 4. Lock votes for this proposal
    _votesUsed[proposalId][msg.sender] = FHE.add(_votesUsed[proposalId][msg.sender], applied);

    // 5. Add to proposal tally (encrypted)
    if (support == VoteType.For) {
        proposal.forVotes = FHE.add(proposal.forVotes, applied);
    } else if (support == VoteType.Against) {
        proposal.againstVotes = FHE.add(proposal.againstVotes, applied);
    } else {
        proposal.abstainVotes = FHE.add(proposal.abstainVotes, applied);
    }

    emit VoteCast(msg.sender, proposalId, support, applied, success);
    return success;
}

Privacy: All tallies remain encrypted

Phase 4: Tally Request and Decryption

After Voting Ends:

await governor.requestTally(proposalId);

Governor Processing:

function requestTally(uint256 proposalId) external {
    Proposal storage proposal = _proposals[proposalId];

    // 1. Validate voting ended
    require(block.timestamp >= proposal.voteEnd);
    require(!proposal.finalized);

    // 2. Calculate encrypted outcome
    euint64 totalParticipation = FHE.add(proposal.forVotes, proposal.abstainVotes);
    ebool quorumMet = FHE.gte(totalParticipation, FHE.asEuint64(quorumVotes));
    ebool forBeatsAgainst = FHE.gt(proposal.forVotes, proposal.againstVotes);
    ebool succeeded = FHE.and(quorumMet, forBeatsAgainst);

    // 3. Request decryption of only final outcome
    bytes32[] memory cts = new bytes32[](2);
    cts[0] = FHE.toBytes32(quorumMet);
    cts[1] = FHE.toBytes32(succeeded);

    uint256 requestId = FHE.requestDecryption(cts, this.finalizeTally.selector);
    proposal.pendingRequestId = requestId;
}

Oracle Callback:

function finalizeTally(
    uint256 requestId,
    bytes memory cleartexts,
    bytes memory decryptionProof
) external {
    // 1. Verify proof
    FHE.checkSignatures(requestId, cleartexts, decryptionProof);

    // 2. Decode results
    (bool quorumReached, bool succeeded) = abi.decode(cleartexts, (bool, bool));

    // 3. Update proposal
    proposal.quorumReached = quorumReached;
    proposal.succeeded = succeeded;
    proposal.finalized = true;

    emit ProposalFinalized(proposalId, quorumReached, succeeded);
}

Result: Only final outcome revealed (passed/failed), vote counts remain encrypted

Phase 5: Unlock Voting Power

After Finalization:

await governor.unlockVotes(proposalId);

Governor Processing:

function unlockVotes(uint256 proposalId) external returns (ebool) {
    require(_proposals[proposalId].finalized);

    euint64 used = _votesUsed[proposalId][msg.sender];
    _votesUsed[proposalId][msg.sender] = FHE.asEuint64(0);
    _available[msg.sender] = FHE.add(_available[msg.sender], used);

    emit VotesUnlocked(proposalId, msg.sender, used);
    return FHE.asEbool(true);
}

Result: Voting power available for new proposals

Phase 6: Queue in Timelock

If Proposal Succeeded:

await governor.queue(proposalId);

Governor Processing:

function queue(uint256 proposalId) external {
    Proposal storage proposal = _proposals[proposalId];

    // 1. Validate succeeded
    require(proposal.finalized && proposal.succeeded);
    require(!proposal.queued);

    // 2. Schedule in timelock
    bytes32 salt = bytes32(proposalId);
    timelock.scheduleBatch(
        proposal.targets,
        proposal.values,
        proposal.calldatas,
        bytes32(0),
        salt,
        timelock.getMinDelay()
    );

    // 3. Mark as queued
    proposal.queued = true;
    proposal.queueTimestamp = block.timestamp;

    emit ProposalQueued(proposalId, block.timestamp + timelock.getMinDelay());
}

Result: Proposal scheduled for execution after delay

Phase 7: Execute

After Timelock Delay:

await governor.execute(proposalId);

Governor Processing:

function execute(uint256 proposalId) external payable {
    Proposal storage proposal = _proposals[proposalId];

    // 1. Validate can execute
    require(proposal.queued && !proposal.executed);
    require(block.timestamp >= proposal.queueTimestamp + timelock.getMinDelay());
    require(block.timestamp <= proposal.queueTimestamp + executionGracePeriod);

    // 2. Execute via timelock
    bytes32 salt = bytes32(proposalId);
    timelock.executeBatch{value: msg.value}(
        proposal.targets,
        proposal.values,
        proposal.calldatas,
        bytes32(0),
        salt
    );

    // 3. Mark as executed
    proposal.executed = true;
    emit ProposalExecuted(proposalId);
}

Result: Proposal executed, actions performed (e.g., treasury transfer)

Privacy Mechanisms

Encrypted Vote Tallying

All vote counts computed homomorphically:

// Adding encrypted votes
proposal.forVotes = FHE.add(proposal.forVotes, encryptedVoteWeight);

// Comparing encrypted tallies
ebool forWins = FHE.gt(proposal.forVotes, proposal.againstVotes);

// Checking quorum
ebool quorumMet = FHE.gte(totalVotes, quorumThreshold);

Privacy: Individual vote weights never revealed

Selective Decryption

Only decrypt final aggregate outcomes:

Decrypted:

• Quorum reached: bool
• Proposal succeeded: bool

Never Decrypted:

• Total for votes count
• Total against votes count
• Individual vote weights

Voting Power Locking

Prevents double-voting across proposals:

// Track usage per proposal
mapping(uint256 proposalId => mapping(address voter => euint64)) private _votesUsed;

// Invariant maintained
_balances[user] = _available[user] + sum(_votesUsed[*][user])

Security: User cannot vote with same power on multiple active proposals

Timelock Security

Time Delays

Purpose: Give community time to react to malicious proposals

Configuration:

• minDelay: Minimum wait before execution (e.g., 2 days)
• executionGracePeriod: Window to execute (e.g., 3 days)

Flow:

Proposal Passes → Queue → Wait minDelay → Execute within gracePeriod

Emergency Cancellation

Admin can cancel malicious proposals:

function cancel(uint256 proposalId) external onlyRole(GOVERNOR_ADMIN_ROLE) {
    _proposals[proposalId].canceled = true;
    emit ProposalCanceled(proposalId);
}

Governance Parameters

Current Configuration (Sepolia)

{
  votingDelay: 300,              // 5 minutes
  votingPeriod: 600,             // 10 minutes
  proposalThreshold: 100n,       // 100 tokens
  quorumVotes: 1000n,           // 1000 tokens
  executionGracePeriod: 86400,  // 24 hours
  timelockDelay: 300            // 5 minutes
}

Typical Mainnet Configuration

{
  votingDelay: 7200,              // 2 hours
  votingPeriod: 50400,            // 14 days
  proposalThreshold: 100000n,     // 100K tokens
  quorumVotes: 1000000n,          // 1M tokens
  executionGracePeriod: 259200,   // 3 days
  timelockDelay: 172800           // 2 days
}

Security Considerations

Access Control

Governor Admin:

• Cancel proposals
• Adjust parameters
• Emergency operations

Timelock Admin:

• Manage roles
• Update delays

Proposers (Governor):

• Schedule operations in timelock

Executors (Governor):

• Execute scheduled operations

Encrypted State

All sensitive values encrypted:

• User balances (_balances[address])
• Available power (_available[address])
• Votes used (_votesUsed[proposalId][address])
• Proposal tallies (forVotes, againstVotes, abstainVotes)

Reentrancy Protection

All state-changing functions use nonReentrant modifier.

Gas Costs

Operation	Approximate Gas	Notes
Token Deposit	~300K	Transfer + accounting
Proposal Creation	~300K	Store proposal data
Vote Casting	~250K	Update encrypted tallies
Request Tally	~400K	Oracle request
Finalize Tally	~200K	Oracle callback
Queue Proposal	~150K	Timelock scheduling
Execute Proposal	Varies	Depends on calls

Integration Examples

Depositing Voting Power

const input = fhevm.createEncryptedInput(governorAddress, userAddress);
input.add64(ethers.parseUnits("100", 18));
const encrypted = await input.encrypt();

await governor.depositVotingPower(encrypted.handles[0], encrypted.inputProof);

Creating a Proposal

const targets = [treasuryAddress];
const values = [0];
const calldatas = [
  treasury.interface.encodeFunctionData("transfer", [
    recipientAddress,
    encryptedAmount,
    proof,
  ]),
];
const description = "Fund development: 10,000 tokens";

await governor.propose(targets, values, calldatas, description);

Casting a Vote

const input = fhevm.createEncryptedInput(governorAddress, voterAddress);
input.add64(ethers.parseUnits("50", 18));
const encrypted = await input.encrypt();

await governor.castVote(
  proposalId,
  1, // VoteType.For
  encrypted.handles[0],
  encrypted.inputProof
);

Complete Lifecycle

// 1. Deposit voting power
await depositVotingPower(amount);

// 2. Create proposal
const proposalId = await createProposal(
  targets,
  values,
  calldatas,
  description
);

// 3. Wait for voting to start
await sleep(votingDelay);

// 4. Cast vote
await castVote(proposalId, VoteType.For, voteWeight);

// 5. Wait for voting to end
await sleep(votingPeriod);

// 6. Request tally
await requestTally(proposalId);

// 7. Wait for oracle (automatic)

// 8. If succeeded, queue
await queue(proposalId);

// 9. Wait for timelock delay
await sleep(timelockDelay);

// 10. Execute
await execute(proposalId);

Related Documentation

• DAO System - Complete contract reference
• Privacy Protocol - FHE implementation
• Deployed Addresses - Contract addresses
